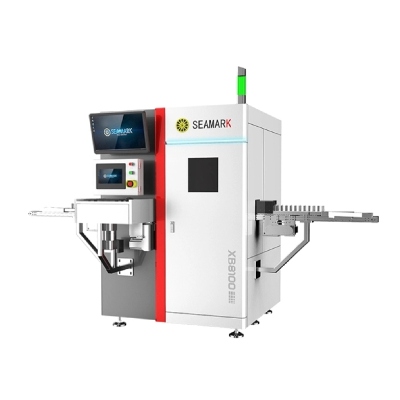

XB8100-Cylindrical Battery Inspection
The XB8100 is specifically designed for cylindrical batteries with diameters ranging from φ14mm to φ46mm, catering to a wide range of inspection needs. It employs advanced area array sampling technology or TDI line scanning sampling technology, ensuring efficient and accurate inspections for multi-layer high-efficiency batteries of different diameters. The inspection parameters include aspects like angle overhang, resistance value, conductivity, among others, ensuring a comprehensive quality evaluation.
Features of XB8100-Cylindrical Battery Inspection
- Premium X-ray TechnologyThe XB8100 employs the globally acclaimed Hamamatsu X-ray tube, renowned for its precision. This ensures detailed inspections of winding batteries, guaranteeing top-quality performance.
- Advanced Algorithm IntegrationSeamark’s in-house algorithm software enhances XB8100’s capabilities. These sophisticated algorithms enable the machine to detect intricate battery details accurately, leading to precise quality assessments.
- Dedicated Customer SupportSeamark provides unmatched customer assistance. Their skilled Research and Development (R&D) specialists and after-sales service team offer swift and effective solutions, ensuring smooth operation for businesses relying on the XB8100.
Specifications of XB8100-Cylindrical Battery Inspection
| X-ray Tube Parameters | |
| Ray Tube Type | Reflective sealed micro-focus ray source |
| Tube Voltage Range | 110KV / 130KV |
| Tube Current Range | 455μA/300μA |
| Maximum Output Power | 50W/39W |
| Micro Focus Size | 5-15μm |
| Receiver Parameters | |
| Type | Flat panel detector/line array detector TDI |
| Field of View | 130mm*130mm/ 205mm*6mm |
| Resolution/pixel Size | 5.8Lp/mm 100μm |
| Ad Conversion Digits | 16bits |
| Efficiency Parameters | |
| Detection Efficiency | ≥90ppm/ ≥200ppm |
| Overkill Rate | ≤1.5% |
| Underkill Rate | 0.00% |
| Product Excellence Rate | ≥99.5% |
| Other Parameters | |
| International Radiation Safety Standards | ≤1usv/hr |
| Control System | Industrial computer Win10 (64-bit) |
| Equipment Size | 1300(L)×1660(W)×1900(H)mm
5000(L)×1800(W)×1900(H)mm |
| Weight | 2500Kg
4000Kg |
| Power Supply | 3-phase 380V/50HZ about 3000W
3-phase 380V/50HZ about 4500W |
| Detection Range | 14450/18650/26650/32700/4680
14450/18650/26650/32700 |
