XB7100-Winding Battery Inspection

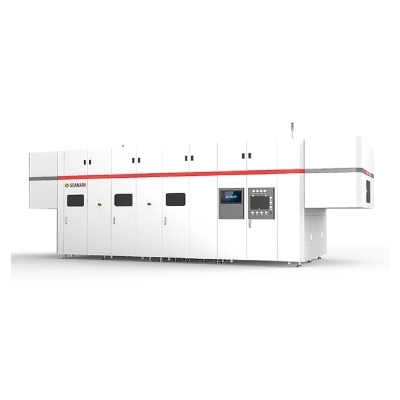

The XB7100 provides a fully automated inline inspection for multi-layer winding power batteries. It conducts a thorough examination of key elements in winding power and energy storage batteries, including the alignment of positive and negative electrode plates, large surface folds, and tab-pulling pins, thereby ensuring comprehensive quality control.



Features of XB7100-Winding Battery Inspection

  • Premium X-ray TechnologyXB7100 employs the highly acclaimed Hamamatsu X-ray tube, recognized globally for its superior quality and precision. This high-end X-ray technology ensures accurate and detailed inspections of winding batteries.
  • Cutting-Edge Algorithm

    Equipped with Seamark’s self-developed algorithm software, XB7100 incorporates advanced algorithms for sophisticated analysis. This software enhances the machine’s ability to detect intricate details within batteries, contributing to precise quality assessments.

  • Expert Support

    Seamark provides unmatched customer support with a dedicated team of professionals. Their experienced Research and Development (R&D) specialists and after-sales service team offer prompt and efficient solutions. This commitment ensures seamless operation and reliability for businesses relying on XB7100 Winding Battery Inspection machines.



Specifications of XB7100-Winding Battery Inspection

Equipment Size 5460mm*2600mm*2800mm
Beat ≥26PPM and above (2 angles or 4 angles)
Excellence Rate ≥99.5%
Overkill Rate ≤1%
Underkill Rate ≤1%
Equipment Failure Rate (DT) ≤2%
Repeated Test Accuracy ≤40um (standard piece measurement)
Average Failure Interval (MT BT) ≥8H
Method of Incoming Materials Incoming materials from logistics line
Radiation Safety Standard ≤1μSV/hr
X-ray Tube Voltage: 40-90KV/40-130KV;

Current: 1 0 – 2 0 0 u A / 1 0 – 3 0 0 u A

Receiver Flat panel detector
Photo Taking Time ≥0.7S
Model Change Time The model change time of old varieties ≤ 2 hours/person; the model change time of new varieties ≤ 4 hours/person
Compatible Range Height: 70~220mm;

Width: 80~260mm;

Thickness: 5~25mm (or customize all models on the market)

Inspection Content Overhang, Large area fold, Tab fold
