Description

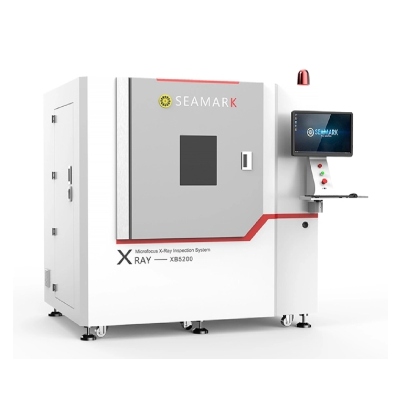

XB5200-Stacking Battery Inspection
The XB5200 is designed for inspecting stacking (blade) process-type cells in the lithium battery industry. It utilizes TDI line scanning technology and offers additional inspection capabilities such as plate fold and tab fold.
Features of XB5200-Stacking Battery Inspection
- Cutting-Edge X-ray TechnologyXB5200 utilizes the world-renowned Hamamatsu X-ray tube, ensuring unmatched precision. This technology allows the machine to conduct intricate inspections of winding batteries, ensuring exceptional performance standards.
- Innovative Algorithm ImplementationSeamark’s proprietary algorithm software elevates XB5200’s capabilities. These advanced algorithms enable the machine to analyze intricate battery details with precision, facilitating accurate and reliable quality assessments.
- Expert Customer AssistanceSeamark’s customer support stands out. Their experienced Research and Development (R&D) professionals and dedicated after-sales service team provide rapid and effective solutions, ensuring uninterrupted operation for businesses relying on XB5200.
Specification of XB5200-Stacking Battery Inspection
X-ray tube parameters | |
Tube Type | Reflective sealed micro-focus ray source |
Tube Voltage Range | 40-90KV/40-130KV |
Tube Current Range | 10-200uA/10-300uA (Maximum output power: 8W-39W) |
Micro Focus Size | 5-15um |
Other Parameters | |
Control System | Industrial computer Win10 (64-bit) |
International Radiation Safety Standards | ≤1μSV/hr |
Equipment Size/Weight | 1910*1450*1900mm/1800kg |
Power Supply | AC220V 10A, 50-60Hz |
Receiver parameters | |
Flat Panel Type | Amorphous silicon flat panel detector (optional)/line array detector TDI |
Pixel Matrix | 1536*1536 |
Field of View | 130mm*130mm Resolution: 5.8Lp/mm Image frame rate (1×1): 20fps |
AD Conversion Bits | 16bits |
Stage Parameters | |
Maximum Sample Size | 900mmX300mm |
Loading Capacity | ≤10Kg |
