XB5100-Winding Battery Inspection

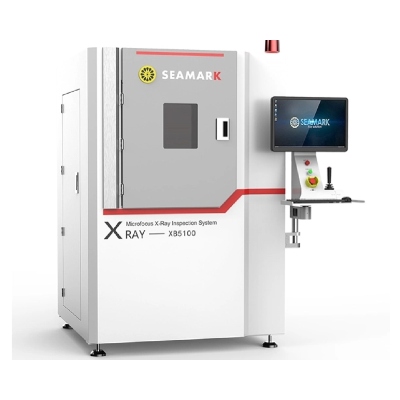

The Seamark XB5100 X-Ray inspection machine, equipped with expandable inspection capabilities such as plate fold and tab fold, and flat panel detector image acquisition technology, is an excellent choice for inspecting winding process-type batteries in the lithium battery industry. This X-Ray inspection system is well-suited for examining a variety of batteries, including aluminum shell batteries, cylinders, buttons, energy storage/power winding, and lithium digital soft packs.



Features of XB5100-Winding Battery Inspection

  • High Configuration
    Adopt the Hamamatsu X-ray tube, which is one of the best X-ray tubes around the world.
  • Advanced Algorithm

    Equip with Seamark Self-developed algorithm software.

  • Professional Service

    Professional R&D and after-sale service team that can provide in-time solutions.



Specification of XB5100-Winding Battery Inspection

X-ray Tube Parameters
Tube Type Reflective Sealed Micro-Focus Ray Source
Tube Voltage Range 40-90KV/40-130KV
Tube Rurrent Range 10-200uA/10-300uA
Maximum Output Power 8W-39W
Micro Focus Size 5-15um
Receiver Parameters
Flat Panel Type Amorphous silicon flat panel detector (optional)
Pixel Matrix 1536*1536
Field of View 130mm*130mm
Resolution 5.8Lp/mm
Image Frame Rate (1×1) 20fps
Ad Conversion Bits 16bits
Detection Efficiency And Accuracy Parameters
Repeated Test Accuracy 40um (standard piece measurement)
Detection Speed ≥1.0/detection point (excluding loading and unloading time)
Stage Parameters
Maximum Sample Size 420mmX420mm
Loading Capacity ≤8Kg
Other Parameter
Control System Industrial computer Win10 (64-bit)
International Radiation Safety Standards ≤1μSV/hr
Equipment Size/Weight 1220*1260*1900mm, About 1000Kg
Power Supply AC220V 10A, 50-60Hz
