Description

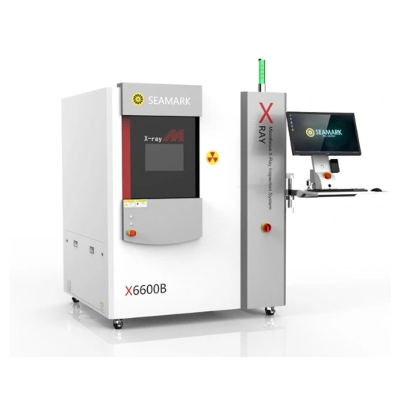

X6600B Offline X-Ray Inspection Machine
X6600B is a 6-axis universal offline precision micro-focus X-ray inspection equipment. It has the characteristics of high magnification, multi-angle,and large-area inspection platform. At the same time, it has one-button door opening and closing,and real-time monitoring of radiation conditions around the equipment to ensure the safety of the environment and operators.
Features of X6600B Offline X-Ray Inspection Machine
- The X and Y axes of the platform are driven by high-precision lead screws to ensure inspection accuracy.
- when the conventional vertical inspection cannot meet the requirements, the T-axis tilt inspection function can be used, and the inspection range is more comprehensive.
- With automatic calibration function
- Real-time monitoring of radiation value, multiple protection of operator’s personal safety
- One-button automatic opening and closing of the movable door, convenient for personal to work
- Large inspection platform to ensure a wider range of equipment inspection sizes
- Fingerprint verification
Specification of X6600B Offline X-Ray Inspection Machine
| X-ray Tube Specification | |
| Tube Type | Reflective Sealed Micro-Focus X-Ray Tube |
| Voltage Range | 40-90KV/40-130KV |
| Electricity Range | 10-200 μA/10-300 μA |
| MAX Output Power | 8W/39W |
| Micro Focus Size | 5- 15μm |
| Flat Panel Detector Specification | |
| Detector Type | IGZO Flat panel detector |
| Pixel Matrix | 1648×1648 |
| Field of View | 160mm×160mm |
| Resolution | 5.1Lp/mm |
| Frame（1×1) | 30fps |
| AD Conversion Bit | 16bits |
| Equipment specification | |
| Dimensions | L1380mm×W1390mm×H1930mm |
| Input Power | 220V 10A 50-60HZ |
| Max Sample Size | 620mm×620mm |
| Operation System | Industrial computer WIN10 64bit |
| Net Weight | 1720KG/1845KG |
