Description

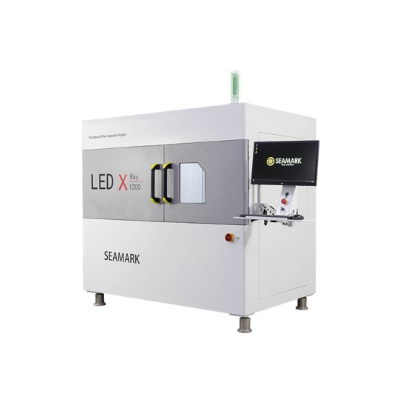

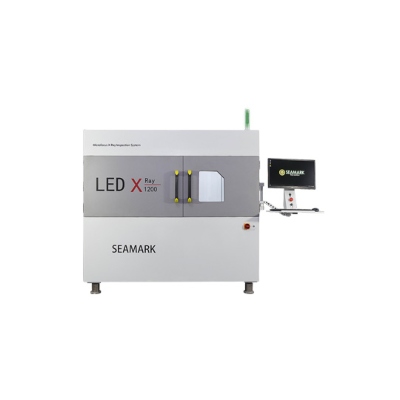

X1200 Offline X-Ray Inspection Machine
X1200 is a precise microfocus X-Ray inspection equipment for large-scale PCB board, 5G communication motherboard, LED light bar and other large area inspections. Its effective inspection area can reach 1200mm×600mm, which can realize large-scale automatic inspection. As one of the most professional BGA machine manufacturers, we have various kinds of industrial X-ray machines for sale and they can be customized according to different product sizes.
Features of X1200 Offline Xray Inspection Machine
- Large detection area 1200mmX600mm
- BGA X-ray source and FPD X/Y motion cover inspection area.
- CNC can edit the inspection program to realize automatic inspection and judgment.
- Accept customized services according to different product sizes (optional).
- Automatic test plan customization (optional).
- Software operation is simple and easy to use, low operating cost.
As a professional x-ray inspection machine manufacturer in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable quality, good service. If you want to know the exact industrial x-ray machine price and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.
Specification of X1200 Offline Xray Inspection Machine
| X-Ray Tube Source Specification | |
| Type | Sealed Micro-Focus X-Ray Tube |
| Voltage | 90 KV (130KV optional) |
| Operating Voltage Range | 40-90KV/130KV |
| Operating Current Range | 10-200 μA/300μA |
| Max Output Power | 8 W/39W |
| Micro Focus Spot Size | 5-15μm |
| Flat Panel Detector Specification | |
| Type | TFT Industrial Dynamic FPD |
| Pixel Matrix | 1536×1536 |
| Field of View | 130mm×130mm |
| Resolution | 5.8Lp/mm |
| Frame（1×1) | 20fps |
| A/D Conversion Bit | 16bits |
| Dimensions | L2040mm×W1280mm×H1870mm |
| Input Power | 220V 10A/110V 15A 50-60HZ |
| Max Sample Size | 1200mm×600mm |
| Control System | Industrial PC WIN7/ WIN10 64bits |
| Net Weight | Approx 2350KG |
| Radiation | ＜1μSv/h |
