Description
Workwear ESD Fabric For Cloth SKPD21

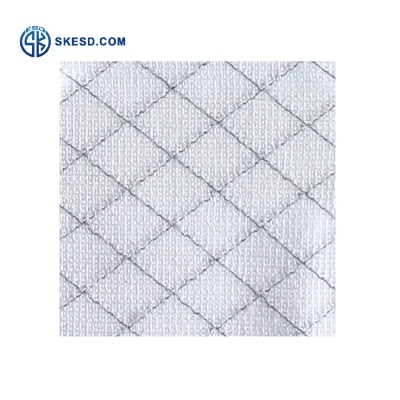

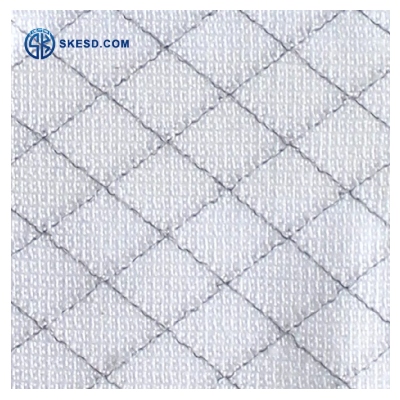

ESD Grid Fabric– SKPD21
Antistatic cloth is generally made of synthetic fiber fabric, woven by conductive fiber. It adopts corona discharge and leakage discharge mechanism, conductive fiber or antistatic synthetic fiber to eliminate the static electricity of clothes and human body. When grounded, the static electricity in the fabric is neutralized by the corona discharge of the conductive fiber, and also released to the ground through the conductive fiber.
Specification and Data
| Item Name | SKPD21 |
|---|---|
| Color | as per our brochure or customized |
| Material | 97% polyester + 3% Carbon Fiber |
| Carbon Configuration | 10mm Rhombus |
| Weave style/design | Knitted & Tricot |
| Warp | 75D |
| Weft | 20D |
| Weight (gr/sqm) | 150 |
| Surface Resistivity (ohm/unit) | 10^6~10^9Ω |
| Friction charges (V) | ＜100V |
| Fabric electric charge density | ≤4.5μC/m2 |
| Static decay time | ＜0.5S |
| Feature | Anti-static |
| Recommended Class Of Cleanroom | Class 10~10000 |
| Application | ESD protection in clean rooms, work wear |
