Description

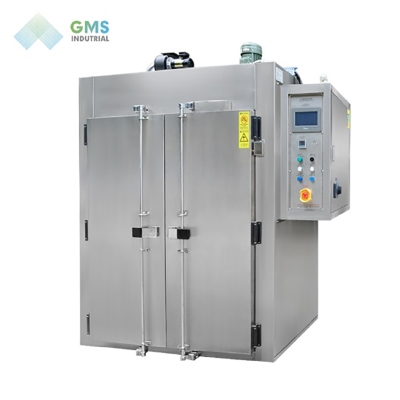

Stainless Steel Clean Workshop Forced Convection Industrial Ovens
GMS stainless steel industrial ovens accommodate a variety of thermal processing applications up to 200℃. Industrial ovens are ideally suited for drum heating, aging, core hardening, drying, preheating, curing, and component testing.
- Stainless steel material to suite clean workshop or corrosive environment
- Max. Temp. 200°C
- Forced convection type
FEATURES | Product
GMS stainless steel industrial ovens accommodate a variety of thermal processing applications up to 200℃. Industrial ovens are ideally suited for drum heating, aging, core hardening, drying, preheating, curing, and component testing. With additional options, these industrial ovens can also be used for applications such as paint baking, plastic curing, varnish baking, sterilizing, and rubber，silica gel and epoxy curing in a clean or chemical space.
- Stainless steel fully for external and internal liner.
- Available in both shelf or truck loaded configurations.
- Adjustable air exchange system which allows fresh air to flow into the oven and exhaust gas get out of the oven.
- Aluminum silicate insulation to ensure safe cabinet skin temperature.
- Independent, over-temperature protection.
- Circuit breaker provided for ground fault protection as standard.
- High volume horizontal air recirculation system and electric heating system allow for maximum temperature uniformity in performance.
- Excellent reliability and performance rating
Parameters | Product
|
Model |
GM-DKX-B01 |
GM-DKX-B02 |
GM-DKX-B03 |
GM-DKX-B04 |
|
Temp. Range |
Room temp. +20~200°C |
|||
|
Control accuracy |
± 1.0°C |
|||
|
Temp. Distribution Accuracy |
±3°C (at 100°C), ±6°C (at 150°C) |
|||
|
Interior Dimensions HxWxD(mm) |
1550x1200x1000 |
1600x1200x950 |
1200x1300x800 |
1350x1260x1050 |
|
Exterior Dimensions HxWxD(mm) |
1830x(1500+235)x1140 |
2100x(1480+235)x1100 |
1620x(1600+235)x950 |
1880x(1560+235)x1200 |
|
Capacity |
1860L |
1820L |
1250L |
1780L |
|
Shelf |
8 stainless steel shelf plates |
6 stainless steel shelf plates |
||
|
Operation Function |
Optional for fixed temp. or program operation |
|||
|
Safety Device |
Overheat protector, fan overload detection, overcurrent ELB etc. |
|||
|
Power Source |
3 phase AC380V |
|||
Shelves
Ethernet communications
Applications | Product
- Aging
- Annealing
- Testing
- Curing
- Drying
- Solvents, Coatings, and Paint Curing
- Stress-Relief
Industries | Product
- Aerospace
- Automotive
- Defense
- Electronics
- Research & Development
- Rubbers & Plastic
- Semiconductors
- Telecom
- Optical Communication
Customization | Product
GMS can provide varying levels of uniformity, size, temperature range; if you have a specific tolerance or specification which must be met, please contact us with your requirements so we can ensure the equipment is designed, tested, and adjusted to meet those requirements.
