Description

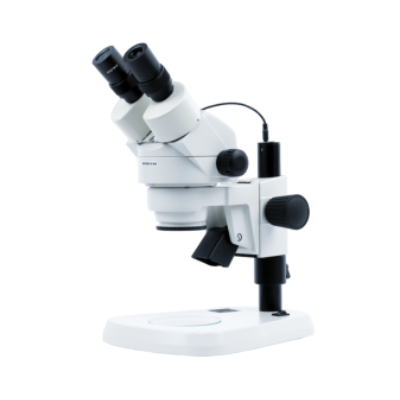

Motic newly introduced SMZ-160 stereo zoom microscope comes with 1:6.4 zoom range (0.75x-4.5x), all metal body with classic illumination. The SMZ-160 is ideal for educational purposes in high schools and universities, but also works fine in industrial quality control.
| SMZ-160 Standard Specification Comparison |
| ▾ SMZ-160 Binocular | ▾ SMZ-160 Trinocular | |
| Optical system | Greenough | |
| Trinocular light split | / | Fixed 50:50 |
| Objectives magnification | 0.75X~5X | |
| Auxiliary objectives | 0.3X (WD = 287mm), 0.5X (WD = 165mm), 0.7X (WD = 120mm), 1.5X (WD = 47mm ), 2.0X (WD = 30mm) |
|
| Interpupillary distance | 55-75mm | |
| Eyepieces (standard) | WF10X/20mm with diopter adjustment | |
| Working distance (standard) | 100mm | |
| Working distance (max.) | 287mm | |
| Stand option | Plain Stand without illumination | |
| R2LED illuminated stand with 3W incident and transmitted illuminations | ||
| C-Mount adapter | / | Trinocular head only |
| 0.35X, 0.5X, 1X adapters available | ||
