Description
Precise optical alignment assures a three-dimensional upright image, that is suitable for a wide range of applications from dissecting to examining printed circuit boards.
The fixed arm and the pole stand, both with incident and transmitted illumination, make the SFC11 models ideal and safe stereo microscopes to be used by technicians and students alike.

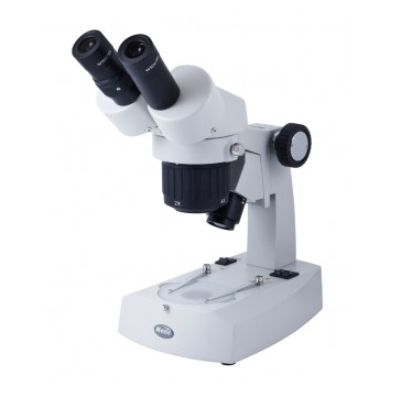

SFC-11C 2LBB Specification Details
| Optical system | Greenough |
| Observation tube | Binocular head |
| Inclination | 45° inclined, 360º rotating |
| Interpupillary distance | 54-75mm |
| Eyepiece(s) | Widefield WF10X/20mm with diopter adjustment, +/- 5 diopter on left eyepiece |
| Objectives system | Turret changer |
| Objectives | 2X-4X |
| Working distance | 95mm |
| Stand type | Fixed arm type stand with transmitted illumination |
| Head holder | For Ø74mm head with incident illumination |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stoke | 44mm |
| Illumination | Tungsten 12V/10W (Incident illumination) Tungsten 12V/10W (Transmitted illumination) |
| Accessories included | Black, white and frosted stage plates and dust cover |
