Description
Precise optical alignment assures a three-dimensional upright image, that is suitable for a wide range of applications from dissecting to examining printed circuit boards. The fixed arm stand with incident and transmitted illumination, makes the SFC-11 an ideal and safe stereo microscope to be used by technicians and students alike.

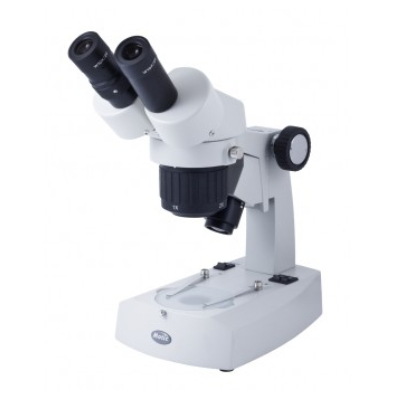

SFC-11A 2LBB Specification Details
| Optical system | Greenough |
| Observation tube | Binocular head |
| Inclination | 45° inclined, 360º rotating |
| Interpupillary distance | 54-75mm |
| Eyepiece(s) | Widefield WF10X/20mm with diopter adjustment, +/- 5 diopter |
| Objectives system | Turret changer |
| Objectives | 1X-2X |
| Working distance | 95mm |
| Stand type | Fixed arm type stand with transmitted illumination |
| Head holder | For Ø74mm head with incident illumination |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stoke | 44mm |
| Illumination | Tungsten 12V/10W (Incident illumination) Tungsten 12V/10W (Transmitted illumination) |
| Accessories included | Black, white and frosted stage plates and dust cover |
| Stage size | 216 x 152mm |
| Length x width x height | 216 x 152 x 337mm |
| Weight | 6kg |
