Rohs2.0 PVC Table Mat
Rohs2.0 PVC Table Mat – SK-802
PVC rubber mat made of PVC and rubber for the safety of employees while working with and around electronic components and assemblies. Antistatic mats are designed to drain static charges from items placed on its surface, while protecting the surface of ESD sensitive devices.
Specification and Data
| Item Name | SK-802 |
|---|---|
| Material | PVC |
| Type | Rohs 2.0 |

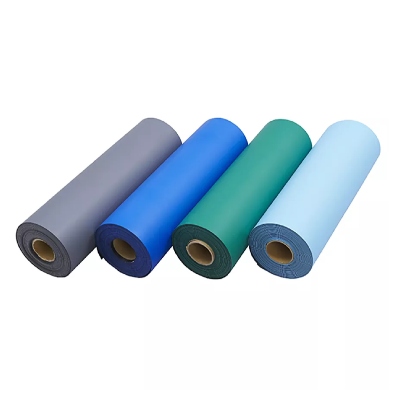

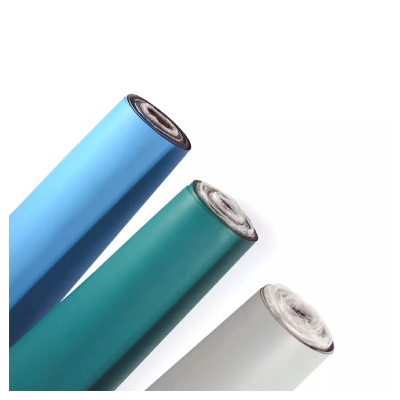

| Color | Green, Blue, Grey |
| Thickness | 1.6mm/1.8mm/2.0mm or customzied |
| Top layer thickness | 0.3-0.5mm |
| Width | 0.6m，0.9m，1.0m，1.2m |
| Length | 10m，15m |
| Surface resistance | 10e⁶-10e⁹ |
| Bottom resistance | 10e³-10e⁵ |
