Description

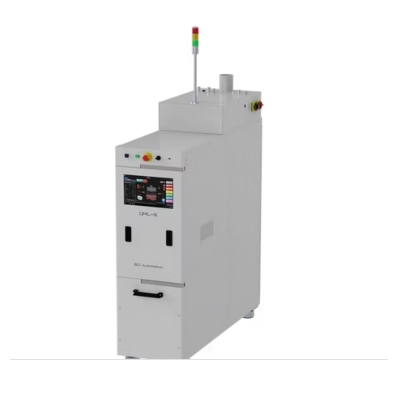

QML-B is a the smallest inline plasma cleaning system found in the market with only 480 mm of width. This system has been designed for applications where machine footprint is paramount.
Being part of the QML family, QML-B has all the characteristcs to sustain all the demands of a 24/7 continuous inline production environment.
QML-B has been used in a range of applications mostly in the Automotive industry. QML-B has been typically used for:
-
Plasma cleaning before wire-bonding on modules
-
Plasma cleaning before transfer molding on modules
-
Plasma cleaning on PCBs, BGA substrates
-
Plasma cleaning before sinter paste deposition on modules

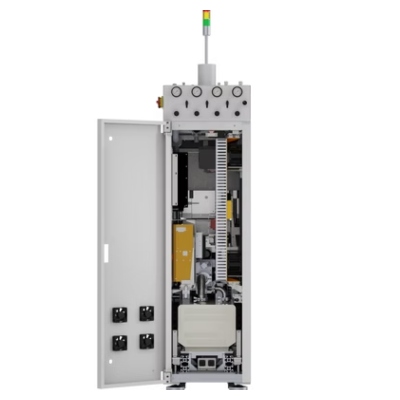

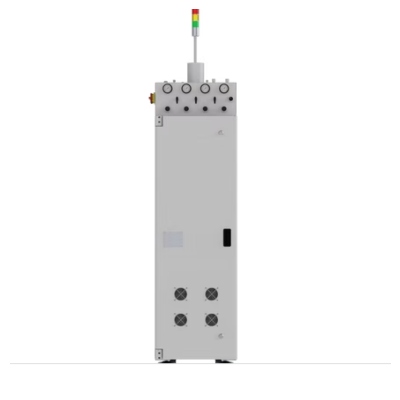

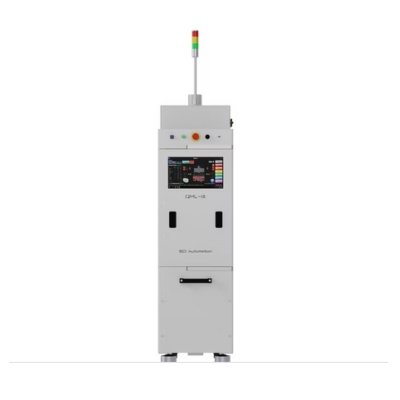

QML-B main advantage is its extremely reduced dimensions, this advantage does not compromise on accessibility. QML-B is in fact been designed to allow complete access from its front and back covers.
All the important subasseblies can be manually extracted with a click from the machine software to allow maintenance access.
Advanced traceability options are available on this system to easily integrate with a variety of Manufacturing Execution Systems (MES).
Product Specifications
Machine type – Super-compact inline plasma cleaner
Footprint – 478W x 1590L x 1727H mm
Plasma chamber configuration – 1 holder for products carrier
Max product size – Carrier: 200W x 300L x 25H mm (customizable)
Min product size – Carrier: 40W x 100L x 1H mm (customizable)
Plasma generator – 300W RF Generator 13.56 MHz
Automatic tuning system
Gas Lines – 2 Process gas lines with Mass Flow Controller
Pumping system – Dry vacuum pump 1000 L/min
Controller – Win10 LTSC PC with fieldbus
16″ Touchscreen
Proprietary SCI software
Facilities – Single phase 110-240V 50/60 Hz, 2.5KVA
CDA 5 to 6 bar
Process gas pressure 0.5 to 1.5 bar
Exhaust port 25 mm OD
Certifications – CE, S2, S8, Cleanroom ISO7 (10k)
Options – Kit for using pure hydrogen and hydrogen generator
Dry vacuum pump 1670 L/min
Traceability package
ISO5 (100) Cleanroom compatibility
Purge line
