Description

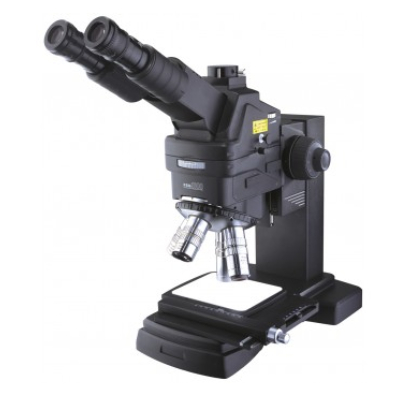

Precise movments are crucial either when using a laser or inspection wafers or flat panels at high magnifications. Even with a resolution of 1 mm, the PSM-1000’s focusing block can handle mounted weight up to 45lbs. The total stroke for the focusing block is 50mm with the option of being reversed for greater use of space.
The PSM-1000 is equipped standard with an adjustable forward-facing nosepiece. The mechanism of the nosepiece allows you to parcenter the objective by inserting two parcentering keys above the objective for convenience and speed. Gone are the days of hunting and pecking with a hexagon key!
PSM 1000 Series Standard Specification Comparison
PSM1000 PSM1000E
| Trinocular tube image | Erect Image | |
| Observation angle adjustment | / | 3° to 30° |
| Field Number | 24mm | |
| Optical pass ratio | Switchable(eyepiece/laser = 100/0 or 0/100); Simultaneous observation(50:50) | |
| Tube lens(correction) | 1x(ultraviolet and infrared) and 2x(visible) | |
| Laser work | Pull out beam splitter for laser work | |
| Applicable laser | 1064/532/355nm NWR laser | |
| Magnification range | 20X – 2000X | |
| Focus Adjustment | With coaxial coarse and fine focusing wheels(right/left) (50mm travel range, 0.1mm/rev. for fine adjustment, 4mm/rev. for coarse adjustment) | |
| Loading weight on optical tube | 20.5kg | |
| Camera mount | C-mount adapter | |
| Head holder | for Ø 32mm column and Ø 76mm head | |
| Light source(optional) | 50W cold light source, light guide length 2m. | |
| Objective nosepiece | Parcenterable, outward, rotary type for bright field lens(with 4 mounts), detachable | |
| Weight(main unit/light source) | 6.8kg/2.5kg | |
| Objectives(optional) | ||
| ELWD Plan Apo | 2x, 5x, 10x, 20x, 50x | |
| ULWD Plan Apo | 50x,100x | |
| ELWD Plan Apo(Parfocality Adjustable) | 2x, 5x, 10x, 20x, 50x | |
| ULWD Plan Apo(Parfocality Adjustable) | 50x,100x | |
| NIR Apo | 20x, 50x | |
