PMI2000


=> Download brochure

Description

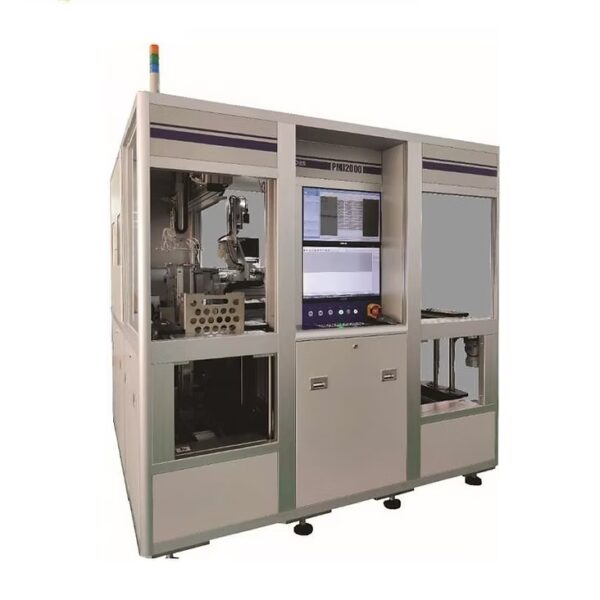

PMI2000 is an automated 2D vision inspection system for the molded device. It comes with top and bottom vision inspection capability, by using a high-resolution camera, lens, and illumination.  The system is able to provide a wide field of view area capture vision system which results in faster image processing and higher UPH yield. The system consists of configurable input and output loader for a stacked magazine. It’s also come with an auto-conversion inspection track for molded lead frame dimensions up to 300mm(L) x 100mm(W) .

Key Features:

  • Automated Post Molding 2D Vision Inspection
  • Input/Output Loader for Stacked Magazine
  • Auto-Conversion Inspection Track for Molder. Lead Frame up to 300mm(L) x 100mm(W)
  • Top & Bottom Vision Inspection Equipped with High-Resolution Camera, Lens, and Illumination
  • Wide FOV Area-Capture Vision Inspection Syster with Minimum Defect Size of 5mils x 5mils
  • 2x LCD Screen for Mapping & Image Display, Keyboard and Mouse
  • 2D Matrix Code Reader for Strip Mapping Solution
  • Windows 10 Pro Operating System
  • TCP/IP Networking For Interface With Host Map Server & Storage Of Map Data Over The Network
  • SECS/GEM Communication Protocol (Optional)

The automated vision inspection system, PMI2000 is designed for handling molded devices based on the lead frame and substrate material. The system is equipped with a dual high-resolution mono camera for top and bottom inspection. PMI2000 integrated with Cognex vision consists of 3 powerful vision tools, which are a datum detection tool, surface detection tool, and measuring tool to increase the efficiency of defect detection. High throughput by using the vision on-the-fly area scan method which is the capturing of top and bottom images are executed simultaneously and the captured images are processed at the vision background
