PMI3000


=> Download brochure

Description

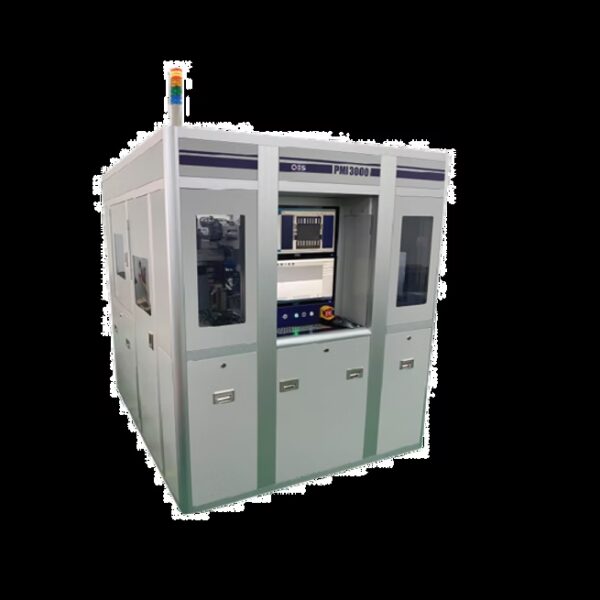

PMI3000

Automated Post Molded Inspection System

PMI3000 is a vision inspection system for Molded devices. Comes with a high-resolution camera with up to 1.3x magnification and illumination. Capable to capture small defect sizes up to 10×10 microns under 1.3x lens magnification. Consists of configurable input/output loader for both stacked magazine and shipping box.

Key Features:

  • Automated Post Molding 2D Vision Inspection
  • Input/output loader for stacked Magazine & Shipping box
  • Auto-conversion Inspection Track for Molded Lead Frame up to 250mm(L) x 100mm (W)
  • Top & Bottom Vision Inspection equipped with 20 MP camera, 0.5x -1.3x Lens, and illumination
  • 2x LCD screen for mapping & image display, Keyboard and Mouse
  • 2D matrix code reader for strip mapping solution
  • Windows 10 Pro Operating systems
  • TCP/IP Networking for interface with Host Map server & storage of Map data over the network
  • SECS/GEM communication protocol (Optional)
