Description

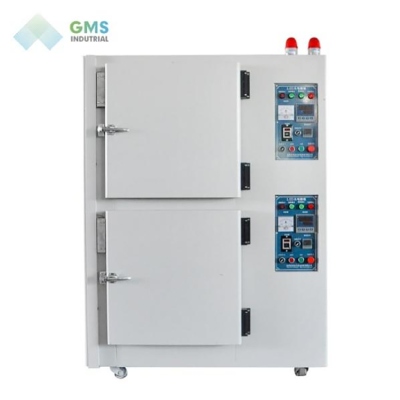

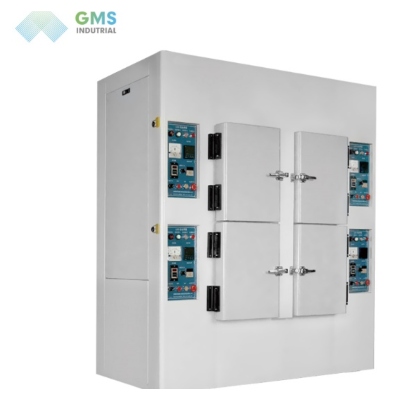

PC Series 2/4/6 Chamber Curing Oven
FEATURES | Product
Multi-chamber oven utilizes a high-volume horizontal air recirculation system which maximizes temperature uniformity and performance. The stacked oven is suitable for curing, drying, and baking in semiconductor, electronic, and many other industrial applications. The stacked structure utilize space for more productivity and it is very ideal for large-scale production application.
● Heavy-duty exterior with heavy-gauge, reinforced, cold-rolled steel
● Baked on white powder-coated finish on the exterior for long-lasting corrosion protection
● Adjustable air exchange system which allows fresh air to flow into the oven and exhaust gas get out of the oven
● Aluminum silicate insulation to ensure safe cabinet skin temperature
● Independent, over-temperature protection
● Circuit breaker provided for ground fault protection as standard
● Compact design
● High volume horizontal air recirculation system and electric heating system allow for maximum temperature uniformity in performance
● Excellent reliability and performance ratings
Parameters | Product
|
Model |
GZ-DM-2SH |
GZ-DM-4SH |
GZ-DM-3S |
GZ-DM-4S |
GZ-DM-6S |
|
Type |
2 -chambers |
4-chamber |
3-chamber |
4-chamber |
6-chamber |
|
Temp. Range |
Room temp. +20~260°C |
||||
|
Control accuracy |
± 1.0°C |
||||
|
Temp. Distribution Accuracy |
±2°C (at 100°C), ±3°C (at 200°C) |
||||
|
Interior Dimensions HxWxD(mm) |
600x600x500 |
230x620x620 |
300 x450 x520 |
||
|
Capacity |
180Lx2 |
88Lx4 |
70L x3 |
70L x4 |
70L x6 |
|
Shelf |
2 stainless steel shelf plates for each chamber |
||||
|
Operation Function |
Optional for fixed temp. or program operation |
||||
|
Safety Device |
Overheat protector, fan overload detection, overcurrent ELB etc. |
||||
|
Power Source |
3 phase AC380V |
||||
Options | Product
Shelves
Temperature recorders (paper or paperless)
Ethernet communications
Touch screen control panel
N2 lead-in device
Applications | Product
- Aging
- Annealing
- Testing
- Curing
- Drying
- Solvents, Coatings, and Paint Curing
- Stress-Relief
Industries | Product
- Aerospace
- Automotive
- Defense
- Electronics
- Research & Development
- Rubbers & Plastic
- Semiconductors
- Telecom
- Optical Communication
Customization | Product
GMS can provide varying levels of uniformity, size, temperature range; if you have a specific tolerance or specification which must be met, please contact us with your requirements so we can ensure the equipment is designed, tested, and adjusted to meet those requirements.
We also offer in heat testing and analysis of your product to ensure the exact oven design for your specific application. If you have a specific tolerance or specification which must be met, please contact us with your requirements so we can ensure the equipment is designed, tested, and adjusted to meet those requirements.
