Description
A new level of Transmitted light microscope for the investigation of birefringent samples: Panthera TEC POL Trino is a trinocularmicroscope with a set of UC Plan Achromatic objectives, working with UC eyepieces of 22mm Field of View. An interchangeable 30WHalogen/3W LED light source is part of a Full-Koehler setup with Field- and Aperture diaphragm. The Motic LightTracer system withmemory function, a built-in Low-Energy mode and an LED feedback indicator helps to optimize your workflow.

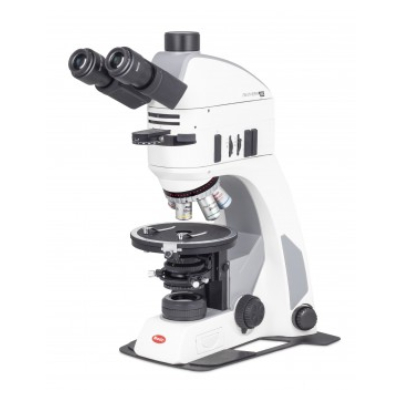

Panthera TEC POL Epi Trinocular Specification Details
| Optical system | Colour Corrected Infinity Optical System (CCIS®) | |||
| Observation tube | Trinocular head, siedentopf type | |||
| Inclination | 25º inclined | |||
| Trinocular light split | Fixed 50:50 | |||
| Interpupillary distance | 48-75mm | |||
| Diopter adjustment | On both eyepieces, +/- 4 diopter | |||
| Intermediate Body | Epi-illuminator LED with rotatable analyzer 360º, Bertrand lens, fixed polarizer and slot for compensators | |||
| Eyepiece(s) | Widefield UC-WF10X/20mm, +/- 4 diopter on both eyepieces | |||
| Nosepiece | Reversed quintuple, coded with single centering holes | |||
| Objective classification | CCIS® Plan Achromatic (strain-free) | |||
| Objectives | 5X/0.13 (WD 17.3.mm) 10X/0.25 (WD16.3mm) 20X/0.4/S (WD 7.3mm) 50X/0.55S (WD 8.4mm) |
|||
| Objective mounting thread | W 4/5″ x 1/36″ (RMS standard) | |||
| Stand type | Upright | |||
| Stage | Circular rotating 360º, lockable | |||
| Stage size | Ø160mm | |||
| Travel range X&Y | 1º increments, 0.1º vernier scale | |||
| Condenser | Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer | |||
| Diaphragm | Iris diaphragm | |||
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | |||
| Fine focus precision | 2μm | |||
| Focusing stroke | 25mm | |||
| Upper limit stop | Preset but adjustable | |||
| Filter holder | On top of the illuminator with fixing cap | |||
| Incident illumination | LED 3W smart segmental ringlight with integrated field and aperture diaphragms | |||
| Transmitted illumination | Koehler LED 3W & Quartz halogen 6V/30W with intensity control | |||
| Illumination interchangeability | Halogen/LED and LED color temperature interchangeability | |||
| Illumination features | Motic Light Tracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator |
|||
| Transformer | Internal | |||
| Power supply | 110-240V (CE) | |||
| Other features | USB 2.0 for external camera power | |||
| Accessories included | Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module, adjustable key for nosepiece, interference color chart, screws for metal extension support | |||
| Length x width x height | 410 x 300 x 450mm | |||
| Weight | 10.4kg | |||
