Description
A combination of high-technology and creativity, the Motic PA53-MET series offers superior optical performance as well as an advanced ergonomic design, futuristic digital capabilities, and innovative modules. Motic PA53-MET: Your ultimate metallurgical Optical Solution.

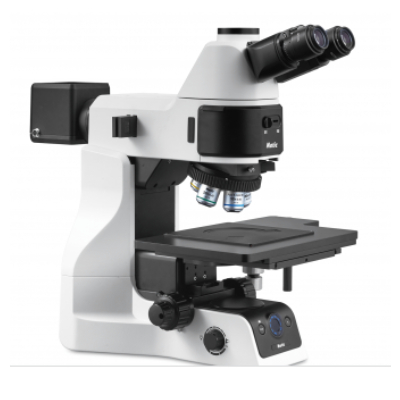

| PA53MET-BD-3D Specification Details |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Illumination | Reflected |
| Binocular Observation Tube (Optional) | Erect type (F.N 25), 20° inclined |
| Trinocular Observation Tube | Erect type (F.N 25), 20° inclined, Trino Light path selection: 2-step (100:0 / 0:100) |
| Eyepiece(s) | 10X (F.N 25), Diopter adjustable, Reticle optional |
| Revolving Nosepiece | 5-position Nosepiece for Brightfield, Darkfield objective lens with DIC slot |
| Base unit – Foucs | Stroke range: 29.5 mm / Coarse and Fine focusing knob. Coarse: 17.7 mm/revolution / Fine: 0.1 mm/revolution (1 μm scale) Upper limit stopper, Torque adjustment ring |
| Base unit – Electronics | Integrated power supply for light adjustment / LED voltage indicator / IL switch and ECO switch |
| Length x width x height | 246 x 572 x 514mm |
| Weight | 19kg |
| Reflected Illumination | |
| BF/DF | Kohler illumination system / Brightfield / Darkfield, Normaski DIC, simple Polarized |
| Light source | 12V 100W halogen |
| 3D Profile Module | |
| Mechanism | High-resolution 5-phase stepping motor, Long crossroller guide system |
| Stroke Distance | 30 mm |
| Resolution | 0.01μm |
| Repeatability | 0.5μm |
| Max Speed | 1.4 mm/sec |
| Length x width x height | 240 x 157 x 202.5mm |
| Weight | 5kg |
| Load capacity | 15kg |
| Objectives | |
| Plan S-APO BD | 5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm,20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm(optional) |
| LPlan S-APO BD (Optional) | 20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm |
| Stage | |
| Stage | metal plate, glass plate |
| Size | 210 x 170mm |
| Stroke X&Y | 104 x 102mm |
| Optional Stage | 6×6” stage / 6×6” stage / 8” wafer stage / 12” wafer stage |
