Description

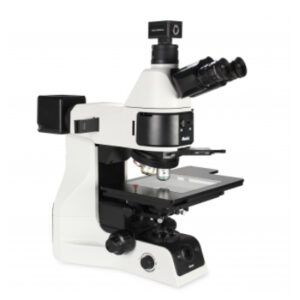

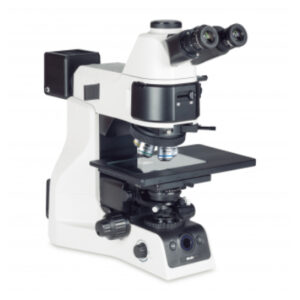

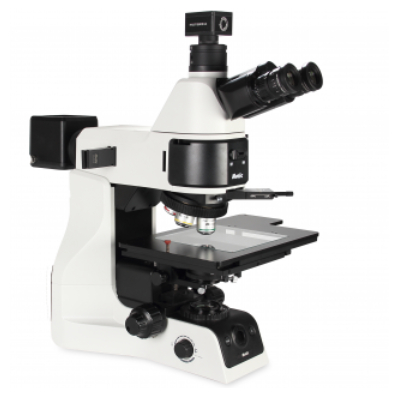

A combination of high-technology and creativity, the Motic PA53-MET series offers superior optical performance as well as an advanced ergonomic design, futuristic digital capabilities, and innovative modules. Motic PA53-MET: Your ultimate metallurgical Optical Solution.
| A53MET Specification Details |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Illumination | Reflected |
| Binocular Observation Tube (Optional) | Erect type (F.N 25), 20° inclined |
| Trinocular Observation Tube | Erect type (F.N 25), 20° inclined, Trino Light path selection: 2-step (100:0 / 0:100) |
| Eyepiece(s) | 10X (F.N 25), Diopter adjustable, Reticle optional |
| Revolving Nosepiece | 5-position Nosepiece for Brightfield objective lens with DIC slot |
| Base unit – Focus | Stroke range: 29.5 mm / Coarse and Fine focusing knob. Coarse: 17.7 mm/revolution / Fine: 0.1 mm/revolution (1 μm scale) Upper limit stopper, Torque adjustment ring |
| Base unit – Electronics | Integrated power supply for light adjustment / LED voltage indicator / IL switch and ECO switch |
| Length x width x height | 246 x 572 x 514mm |
| Weight | 19kg |
| Reflected Illumination | |
| BF | Kohler illumination system / Brightfield, Normaski DIC, simple Polarized |
| Light source | 12V 100W halogen |
| Objectives | |
| Plan S-APO | 5X/0.15 (W.D=20mm) 10X/0.3 (W.D=12mm) 20X/0.45 (W.D=3mm) 50X/0.8 (W.D=1mm) 100X/0.9 (W.D=0.5mm)(optional) |
| LPlan S-APO(optional) | 20X/0.4 (W.D=12mm) 50X/0.55 (WD=8mm) 100X/0.8 (W.D=3.3mm) |
| Stage | |
| Stage | metal plate, glass plate |
| Size | 210 x 170mm |
| Stroke X&Y | 104 x 102mm |
| Optional Stage | 6×6” stage / 6×6” stage / 8” wafer stage / 12” wafer stage |
