Description
Employing a Common Main Objective (CMO) infinity optical system, the Motic K-500 Series stereo microscope produce and showcase crisp, distortion-free, 3-Dimensional images. The CMO and infinity combination lower the fatigue of long term usage to ensure viewing is no longer a task in itself.

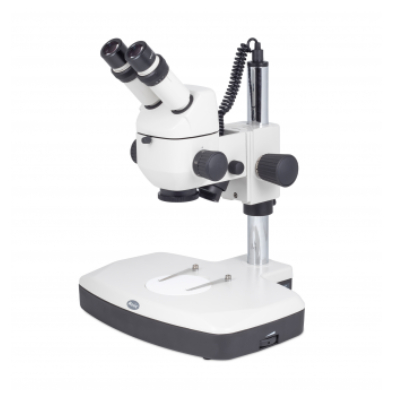

K500LED Specification Details
| Optical system | Common Main Objective (CMO) Infinity optical system |
| Observation tube | Binocular head |
| Inclination | 45° inclined |
| Interpupillary distance | 54-76mm |
| Eyepiece(s) | Widefield WF10X/23mm with diopter adjustment, +/- 5 diopter on both eyepieces |
| Objectives system | 5-position drum magnification changer |
| Objectives magnification | 6.4X 10X 16X 25X 40X |
| Working distance | 89mm |
| Stand type | Pole type stand with transmitted illumination |
| Column/Arm | Ø32mm, 295mm high |
| Head holder | For Ø32mm column with incident illumination |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stoke | 49mm |
| Incident illumination | 3W LED with intensity control |
| Transmitted illumination | 3W LED with intensity control |
| Accessories included | Dust cover, black/white and frosted stage plates |
| Base | 329 x 277mm |
| Length x width x height | 329 x 277 x 434mm |
| Weight | 5.9kg |
