Description

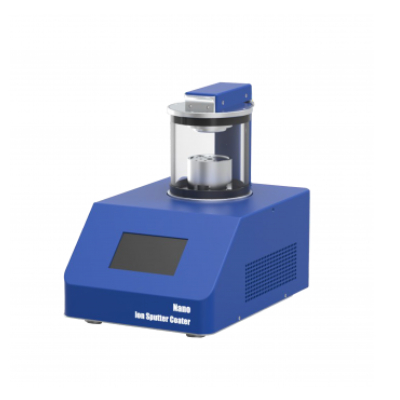

lon Sputtering Coater
Coat Gold and Platinum fast on your sample Enhance your image contrast and brightness by increasing conductivity. lon sputter coater creates thin metal coat on a specimen for better conductivity
-
- ✓ Modern metallic design that fits every place
-
- ✓ Magnetron sputtering
- ✓ Easy and hassle-free touch screen operation Mial Coater
| on Sputtering Coater Specification Details |
| Pump Group | Rotary Vane Vacuum Pump |
| Pumping Speed | >2 m³/h |
| Ultimate Vacuum | ≤2 Pa |
| Operating Pressure | 5-10 Pa |
| Vacuum Extraction Time | <2 Min |
| Vacuum Gauge | Pirani Vacuum Gauge |
| Sample Chamber Size | Φ120×120 mm Quartz Glass |
| Magnetron Sputtering Target | Target Size Φ32×0.1-2 mm |
| Sputtering Power Supply | DC Sputtering Power Max. 50 mA, 0-1000 V DC, Constant Current Control |
| Sputtering Time | Programmable |
| Control Method | Touch Screen Control |
| Weight | ~12 kg |
| Dimensions | ~250 mm(W) × 350 mm(D) × 280 mm(H) |
| Power Supply | 220V AC, 50/60 Hz, Grounded Three-Prong Plug |
| Power Consumption | <500 W |
| Cooling Method | Air Cooling |
| Notes | The above-listed technical specifications and parameters are subject to change without prior notice. Please contact us for details. |
