Description

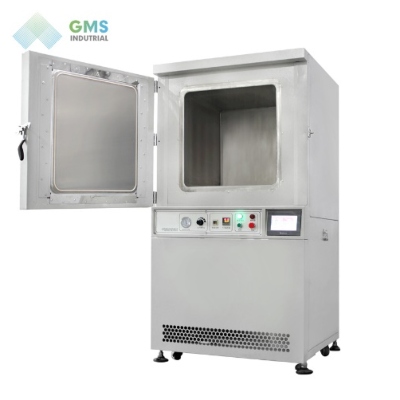

High Temperature Vacuum Drying Oven
Large vacuum drying oven designed for all kinds of vacuum drying purpose.
- Max. temperature 250℃
- Operating vacuum range 101kPa -0.1kPa
This oven is ideal for removing residual water, solvents or other volatile compounds from temperature-sensitive products. Vacuum pump will be installed in the downside of the oven to save installation space with quick connection flange piping. This type of oven is widely used in labs, semiconductor, MEMS, and electronic area.
FEATURES | Product
- Easy to operate, fixed value operation, program operation, quick auto stop proceeding, auto stop operation, auto start operation can be realized.
- Temperature control is PID mode touch screen instrument, single point type or program type temperature control, can be automatically calculated, PV/SV display at the same time, point touch setting, with memory function (such as temperature, time).
- Auto/manual modes are available, easy operation with fixed temperature, quick start/stop operations.
- Equipped with safety devices with self-diagnosis, overheat protector
- Provide standard and customized functions in a variety of sizes and temperature ranges.
Parameters | Product
|
Model |
GZ-VC-02 |
GZ-VC-01 |
|
Temp. Range |
RT+80℃-300℃/400℃ |
|
|
Pressure Range |
101 kPa to 0.1 kPa (760 Torr to 1 Torr) at absolute pressure |
|
|
Temp. Regulation Accuracy |
±1℃ |
|
|
Temp. Distribution Accuracy |
±1.5%℃ |
|
|
Interior Dimensions HxWxD(mm) |
450x450x450 |
600x600x600 |
|
Exterior Dimensions HxWxD(mm) |
1500x700x700 |
1720x850x850 |
|
Shelves |
2 plates |
4 plates |
|
Workspace Capacity |
91L |
216L |
|
Cooling System |
Air cooling system |
|
|
Control System |
LCD touch screen with PLC |
|
|
Safety Device |
Door detector switch, overheat protector, oxygen content monitor, low water pressure detection, low gas pressure detection, fan overload detection, overcurrent ELB etc. |
|
|
Power Supply |
3 phase AC 380V or as request |
|
Shelves
Vacuum Pump
Temperature recorders (paper or paperless)
Ethernet communications
Customization | Product
GMS can provide varying levels of uniformity, size, temperature range; if you have a specific tolerance or specification which must be met, please contact us with your requirements so we can ensure the equipment is designed, tested, and adjusted to meet those requirements.
