Description
High-temperature Resistance ESD Kapton Tape

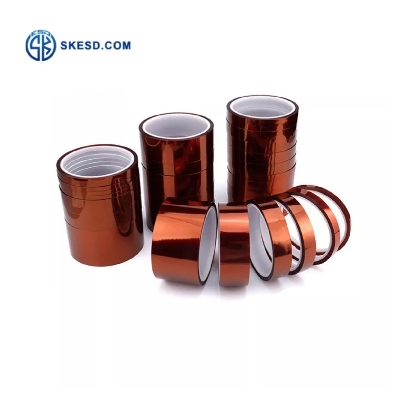

High-temperature Resistance ESD Kapton Tape – SK-EKT01
The ESD kapton tape is made of polyimide film, and is coated with high-performance silicone pressure-sensitive adhesive on one side. It has the properties of good viscosity, high temperature resistance, acid and alkali resistance, strong retention, and no glue residue. The peeling electrostatic voltage of the tape is less than 50V to ensure that the electronic parts will not be damaged by the electrostatic voltage.
Specification and Data
| Item Name | SK-EKT01 |
|---|---|
| Material | PET/PI |
| Color | Gold |
| Thickness | 0.06mm |
| Length | 33m |
| Width | 1-500mm(Customize) |
| Liner | Liner / Without Liner |
| Anti-static | ESD |
| Surface resistance | 10e6-10e9 |
| High temperature resistance | 180℃ / 260℃ |
| Breakdown voltage | Min 5.0KV |
| Tensile strength | Min 115N/25mm |
| Peel Strength | Min 5N/25mm |
