Description

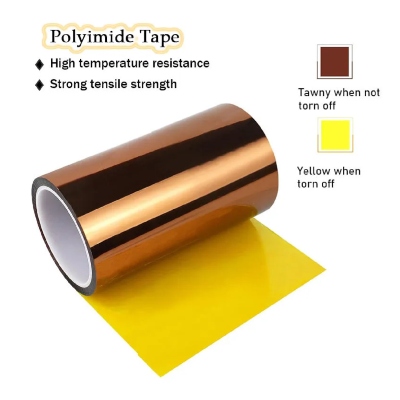

High Temperature Masking Tape
In addition to its primary applications in the electronics industry, high-temperature masking tape is also suitable for aerospace, automotive, and industrial applications. Its non-corrosive and ozone-depleting properties make it an environmentally friendly choice, while its flame-retardant and chemical-resistant properties ensure its durability even in the harshest environments.
Specification and Data
High temperature masking tape is available in 33-meter rolls and eight different widths. Its total thickness of 0.070 mm and wide operating temperature range ensure the stability and performance required for precision masking applications. Looking for high-temperature resistant polyimide masking points?
This high-temperature masking tape is a high-performance polyimide pressure-sensitive tape designed for applications with extremely high heat and chemical resistance requirements. Its surface is coated with a silicone adhesive, providing excellent dielectric insulation properties, making it ideal for electronics manufacturing and other industries requiring high-temperature durability.
| Product name | High Temperature Masking Tape |
|---|---|
| Base Material | Polyimide Film (PI Film) |
| Adhesive Type | Silicone Pressure-Sensitive Adhesive |
| Thickness | 0.05mm / 0.06mm / 0.08mm / 0.11mm |
| Width | Can be cut to any width |
| Length | Regular length is 33m |
| Features | 1、Good adhesive strength
2、High temperature resistance up to 260℃
3、Insulation and high voltage resistance
4、Chemical and corrosion resistance
5、High tear resistance
6、Not easy to break
7、Flexible, conformable and easy to process
8、Polyimide itself is flame-retardant
|
| Applications | 1、Mainly used for wrapping coils and lead wires of motors and transformers
2、Insulation protection for circuit boards and lithium
batteries 3、Insulation of stator windings and high-temperature fixing of components
4、Insulation masking for industrial
high-temperature spraying and other insulation & high-temperature applications |
| Quality | High quality |
| OEM&ODM | Yes |
This tape is ideal for masking components in wave soldering and dip soldering processes. It protects sensitive areas on printed circuit boards (PCBs) while maintaining electrical insulation. It has a heat resistance up to 230°C (446°F) and excellent solvent resistance, operating reliably even when exposed to highly corrosive chemicals.
