Description

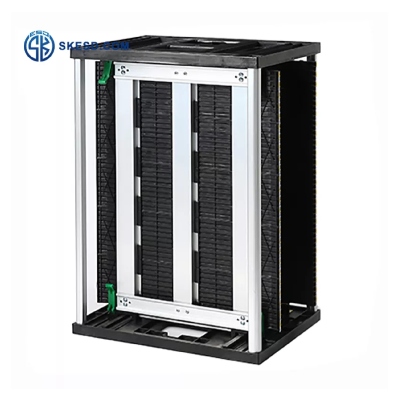

Heat Resistance 300 ℃ ESD Magazine Rack 460*400*563mm
ESD Magazine Rack – SK925
The SMT Magazine Rack are widely used in the PCB loader and unloader machine, suitable for transport, store and manage the PCBs in the PCB fabrication factories, it’s a smart PCB storage system, the magazines take small room, but it can be stackable and store the PCBs convenient and ordered.
Specification and Data
| Item Name | ESD Magazine Rack |
|---|---|
| Material | Aluminium Alloy + Metal with screw adjustment |
| Type | Metal Top & Bottom |
| Size | 460*400*563mm |
| PCB Size | 460*(50-330)mm |
| Capacity | 50pcs |
| Slot depth | 4.5mm |
| Slot width | 5.5mm |
| Slot pitch | 10mm |
| Surface resistance | 10e4-10e9 |
| Heat resistance | 300℃ |
Anti-static Magazine Rack Specification
| Model | Overall size(mm) | Suitable PCB Size | Top and Bottom boards material | Side of slot （depth*width*spacing） |
|---|---|---|---|---|
| SKM-6021 | 355*320*563 | 355*（50-250） | Stainless Steel | 3*5.5*10 |
| SKM-6022
Heat-resistant type |
355*320*563 | 355*（50-250） | Stainless Stainless | 3*5.5*10 |
| SKM-6023 | 355*320*563 | 355*（50-250） | Plastic | 3*5.5*10 |
| SKM-6024 | 460*400*563 | 460*（100-330） | Stainless Stainless | 4*5.5*10 |
| SKM-6025
Heat-resistant type |
535*460*563 | 460*（100-330） | Stainless Stainless | 4*5.5*10 |
| SKM-6026 | 535*460*563 | 535*（50-390） | Stainless Stainless | 4*5.5*10 |
| SKM-6027 | 535*530*570 | 535*（120-460） | Stainless Stainless | 4*5.5*10 |
For more options, visit our main section for Smt Magazine Racks.
For more options, visit our main Material Handling Equipments section.
Order ESD Magazine Rack 460*400*563mm
To order the ESD Magazine Rack 460*400*563mm, please click email [email protected]. We can provide ODM/OEM services according to your requirements.
In addition to Smt Magazine Racks, we also offer a variety of other material handling equipments including Esd Bags, Esd Pcb Trolley, Esd Pcb Racks, Esd Boxes, and Esd Corrugated Boxes.
