EasyNanoScan TT

EasyNanoScan TT

Category: Brand:

Description

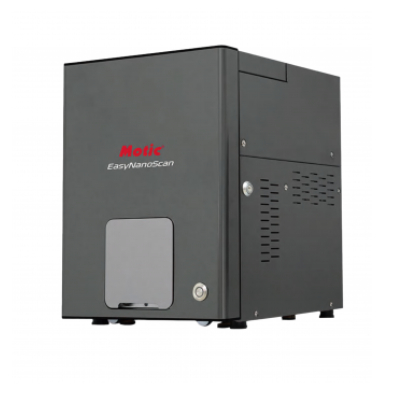

Easy NanoScan TT

  • Faster Easier Operation
  • Hi Res. x200K Image @30kV
  • Compact & Light
  • Compact & Light
  • More Accessories
  • High Reliability & Safety

    Easy NanoScan TT Specification Details

    Imaging System
    Magnification 5nm@30kV(SE) 10nm@30kV(BSE)
    Electron Gun Tungsten(W)Filament
    Detector Standard Secondary Electron Detector (SE),
    Backscattered Electron Detector (BSE)
    Magnification 10X to 200,000X
    Accelerating Voltage 1 to 30kV
    Sample Chamber
    Working Distance 5 to 40mm
    Stage X,Y: 40mm, Z: 5~40mm, T: -90~90° (Manual), R: 360°
    X, Y, Z Motorized
    Maximum Sample Size 80mm(D) x 40mm(H)
    Navigation Optical Real Image
    Vacuum System
    Take Time Vacuum: <90sec, Vent: <10sec
    Vacuum Mode High Vacuum Mode (< 9×10⁻³ Pa) / Low Vacuum Mode
    Pump Electrical valve system (compressor NOT required)
    Full Automated Evacuation System
    Turbo molecular pump & Rotary vane pump
    Control System
    Workstation Vacuum: <90sec
    Vent: <10sec
    Display Mode Focus Mode: 320 x 240 pixel, Resizable
    Preview Mode: 800 x 600 pixel
    Slow Mode: Applicable to both preview and focus mode
    Photo Mode: Up to 3200 x 2400
    Image Format EJPEG, TIFF, BMP, PNG
    Stage Vibration System Optional
    Chamber Camera Optional
    EDS Optional
