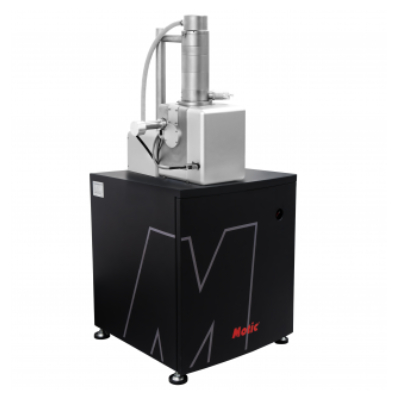

Easy NanoScan 20S

Description

Easy NanoScan 20S

• Compact
• Ground
• Floor SEM


  Easy NanoScan 20S Specification Details

  Magnification	20X ~ 300,000X
  Resolution	3nm with SE detector
  Acceleration Voltage	200V ~ 30kV Continuously Adjustable
  Detector	SE, BSE (Optional)
  Electron Gun	Precentered Tungsten Filament
  Objective IRIS	4-step Variable Aperture (20/20/50/100µm)
  Image Shift	±50µm
  Stage	Manual 3-Axis stage (X,Y: 40mm / Z: 5~45mm), Manual (T: -20°~90° / R: 360°)
  Optional Stage	Motorized 3-Axis stage (X,Y: 90mm / Z: 5~60mm), Manual (T: -20°~90° / R: 360°)
  Automatic Function	Auto Focus, Auto Brightness / Contrast, Auto Gun alignment
  Maximum Sample Size	Horizontal: 96mm / Vertical: 45mm
  Display Mode	Focus Mode
  Focus Mode	320 x 240 pixel, Resizable
  Preview Mode	800 x 600 pixel
  Slow Mode	Applicable to both preview and focus mode
  Photo Mode	Up to 3200 x 2400
  Image Format	JPG / TIFF / BMP
  Image Storage Pixel	940×705 pixel / 1024×768 pixel / 1664×1248 pixel / 3200×2400 pixel
  Vacuum System	Automated Evacuation System Turbo molecular pump (Vacuum ready within 3 minutes) Rotary vane pump Electrical valve system (compressor NOT required)
  Vacuum Mode	High Vacuum Mode (< 9×10⁻³ Pa) / Charge Reduction Mode
  Working Distance	5~45mm
  EDS	Oxford, Bruker, EDAX, Thermo compatible
  Optional Devices	EBSD WDS CL Chamber Camera LaB6/CeB6 Upgrade 3D Imaging Raman Spectroscopy E-beam Lithography
  Dimension (mm)	600(W) x 623(D) x 1350(H) mm
  Weight	130kg
