Description

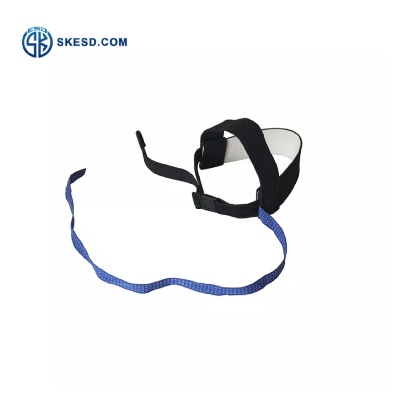

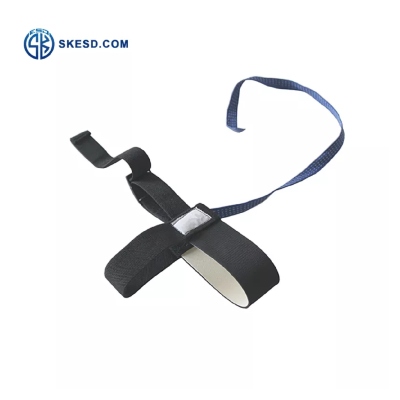

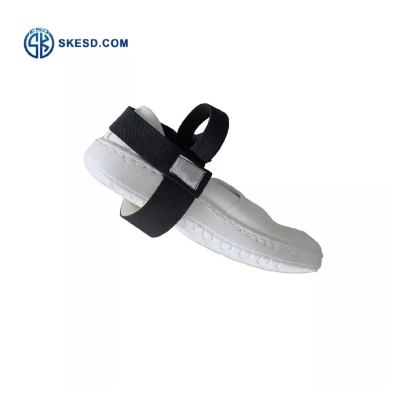

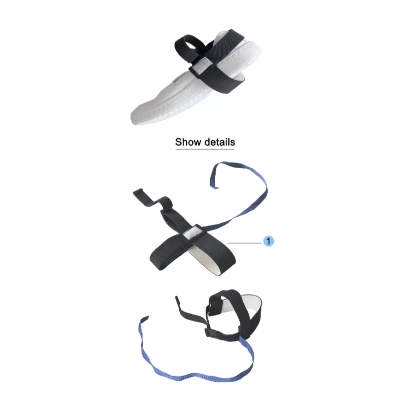

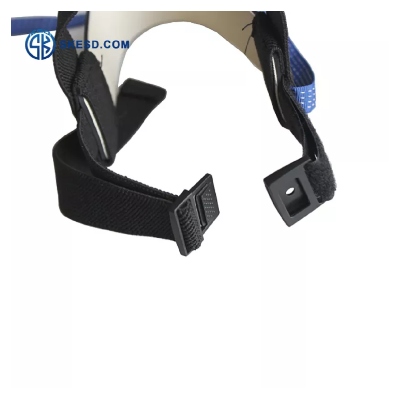

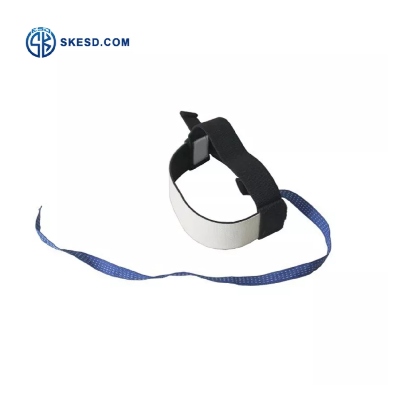

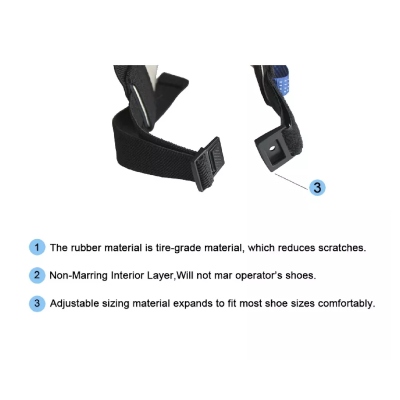

Durable Rubber Esd Heel Strap Foot Grounder SK101
ESD Heel Grounder – SK101
The earthing line in socks will remove static of body through heel grounder, so the earthling line must contact with skin. The user should wear the two heel grounders and avoid walking on the area without static protection.
Specification and Data
| Item Name | SK101 |
|---|---|
| Color | white&black or customized |
| Material | 2 layers of Synthetic rubber + conductive ribbon |
| Size | Free size ( extra large size could be customized) |
| Ribbon Length | 400-450mm (can be custom) |
| Riboon Resistance | 10e3Ω |
| Black layer resistance | 10e3-10e5 Ω |
| Blue/white layer resistance | 10e6-10e9 Ω |
| System resistance | 10e6 Ω |
| OEM Service | Available |
Application
- Electronics Factory
- Pharmaceutical factory
- Chemical plant
- Clean room Laboratory
