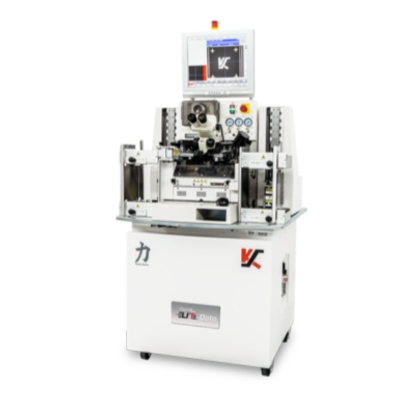

ConnX ELITE Opto
Automatic High SPeed Wire Bonder
ConnX ELITE™ Opto is the latest high speed automatic wire bonder in the industry leading Power Series. Updated motion control systems and the Quick-LED Suite processes deliver maximum productivity and simplified process optimization. ConnX ELITE Opto is the new standard in interconnection for LED packages.
Key Features:
- Bondable area of 56 x 80 mm
- ± 3.0 μm accuracy @ 3 sigma
- New high speed X-Y-Z motion control and vision systems
- New proprietary Quick-LED Suite provides robust process performance at maximum UPH
- Interactive Programmable Look Ahead Vision for ease of set-up for maximum throughput
- Complete Illumination System with automatic adjustment for PRS robustness
- Single 2x magnification optics
- Auto SHTL and NSOL Recovery for improved MTBA performance
- Auto-BITS self-teach and optimization
Field Upgrade Path:
- ConnX ELITE Opto LA (Large Area)
- ConnX ELITE Opto ELA (Extended Large Area)
