Description

K&S BONDER-CAPILLARY PROVEN SOLUTION BENEFITS

For Various IC Packaging Challenges Associated with

  • Interconnect for high density packages on wafer or substrate
  • Electromagnetic interference (EMI) shielding for RF devices



The ProVertical Loop Process Enables

  • Vertically bonded wires per requirements – Target Wire Height & Form Angle
  • Minimized wire-to-wire pitch – No second bond knicking on substrate or wafer
  • Reduced capillary-wire interference risk – Robust process linked to capillary geometry
  • Improved overall process yield – Productivity (UPH) improvement of up to 5%

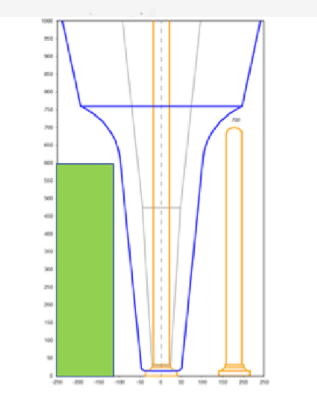

The Vertical Wire Bonding Capillary

  • Design optimized – per package constrains (access restrictions, breakage risk) and physical properties (material, geometrical)
  • Performance predicted – by design configurator specifically developed for vertical wire formation process
