Description
Now Industrial quality control can be performed for all opaque materials like minerals and metal samples with ease and efficiency. The BA310Met also performs well in Educational environments for engineering and material professions, where affordability and ease-of-use are key demands.

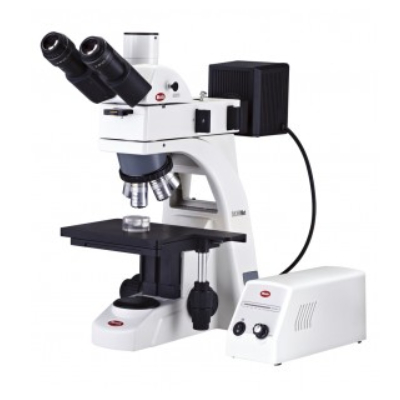

BA310MET Trinocular Specification Details
| Optical system | Color Corrected Infinity Optical System [CCIS®] |
| Observation system | Swiveling 360° with 30° inclination |
| Observation Tube | Trinocular head |
| Trinocular light split | 100:0/20:80 |
| Interpupillary distance | 48-75 mm |
| Eyepiece(s) | Standard Eyepieces Widefield N-WF 10X/20 with +/- 5 diopter |
| Optional Eyepieces Widefield N-WF 15X/16 with +/- 5 diopter Widefield N-WF 10X/22 with +/- 5 diopter |
|
| Nosepiece | Reversed quintuple |
| Objective mounting thread | RMS (W 4/5” X 1/36”) |
| LM Plan Achromat objectives | Standard Set 5X/0.13 (WD 11.5mm) 10X/0.3 (WD 6.8mm) 20X/0.4 (WD 11.1mm) 50X/0.55 (WD 8.2mm) |
| Optional Set LM Plan 100X/0.8 High NA EC-M PL 20X/0.45 High NA EC-M PL 50X/0.75 |
|
| Stage size | 180 x 140mm |
| X/Y travel range | 75 x 50mm |
| Incident illumination | 12V/50W Halogen illuminator with external power supply (incident light) Halogen bulb exchangeable with 3W LED (4500K,6000K) |
| Accessory (optional) | Polarizer, Analyzer, Camera adapter (0.5X, 0.65X, 1X) |
| Specimen Thickness | Max. 30mm |
