Description

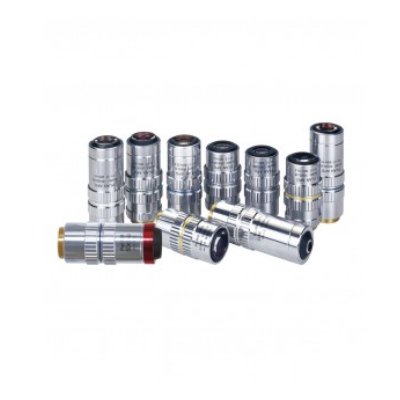

Motic’s Plan Apochromat objectives provide the working distances at the numerical aperture values needed. Covering magnification ranges from 2x to 100x, the Plan Apochromat objectives are also available with the unique option of parfocality adjustment. The mounting thread is M26 x 1/36″ (0.706) for integration to existing systems.
| ELWD Standard Lens Specification Details |
| N.A. | WD (mm) | Resolution(μm) | |
| ELWD Plan Apo 2X | 0.055 | 34.0 | 5.0 |
| ELWD Plan Apo 10X | 0.140 | 34.0 | 2.0 |
| ELWD Plan Apo 20X | 0.280 | 33.5 | 1.0 |
| ELWD Plan Apo 40X | 0.420 | 20.0 | 0.7 |
| ELWD Plan Apo 60X | 0.550 | 13.0 | 0.5 |
| ELWD Plan Apo 100X(HNA) | 0.8 | 3.0 | 0.34 |
| ELWD (Parfocality Adjustable) Lens Specification Details |
| N.A. | WD (mm) | Resolution(μm) | |
| ELWD Plan Apo 2X | 0.055 | 34.0 | 5.0 |
| ELWD Plan Apo 5X | 0.140 | 34.0 | 2.0 |
| ELWD Plan Apo 10X | 0.280 | 33.5 | 1.0 |
| ELWD Plan Apo 20X | 0.420 | 20.0 | 0.7 |
| ULWD Standard Lens Specification Details |
| N.A. | WD (mm) | Resolution(μm) | |
| ULWD Plan Apo 50X | 0.420 | 20.5 | 0.7 |
| ULWD Plan Apo 100X | 0.550 | 13.0 | 0.5 |
| NIR Lens Specification Details |
| N.A. | WD (mm) | Resolution(μm) | |
| NIR Apo 20X | 0.400 | 20.5 | 0.7 |
| NIR Apo 50X | 0.420 | 19.0 | 0.7 |
