Description

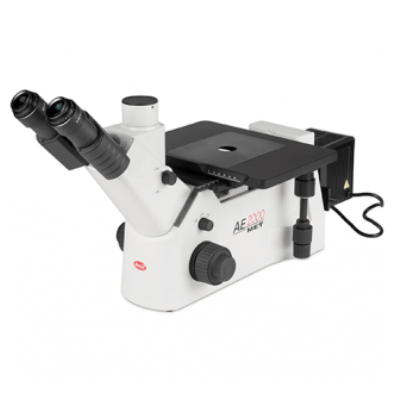

The AE2000MET is Motic’s inverted metallurgical microscope for inspecting large, bulky samples in industries like automotive and steel. With CCIS® optics, long working distance objectives, and robust illumination, it ensures high-quality imaging and smooth operation for failure analysis and quality control.
AE2000MET Specification Details
| Optical System | Color Corrected Infinity Optical System [CCIS®] |
| Observation Tube | Trinocular head, Siedentopf type, 360º swiveling |
| Inclination | 45º inclined |
| Trinocular light split | 20/80 |
| Eyepieces | Widefield N-WF 10X/20mm, with diopter adjustment |
| Nosepiece | Reversed quintuple |
| Interpupillary Distance | 48-75mm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2µm minimum increment |
| Mechanical Stage | 280 x 180mm |
| X/Y Travel range | 50 x 50mm |
| Illumination | 12V/100W; external |
