Description

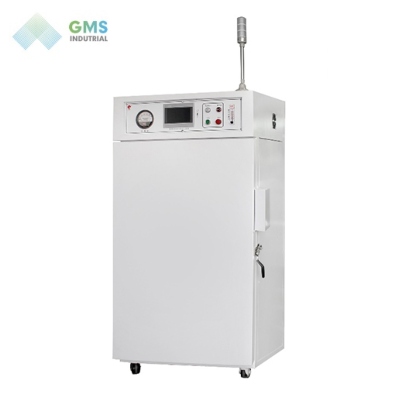

350L large capacity Vertical Clean Oven
Clean ovens are used extensively in heat treatment or drying of semiconductor wafers, liquid crystals, disks and other components and devices requiring clean air conditions.
- Class 100
- 350L large capacity
- Max. temperature 260℃
FEATURES | Product
Clean room oven can be prepared for installation in clean-room environments. Class 100 cleanliness is achieved by employing a HEPA filter and a back-to-front laminar circulation system. The high-performance oven provides stable performance even during heat-up or cooling. User-friendly PID microprocessor temperature control allows repeated temperature settings from ambient +35° to 260°C. Flowmeter and 8mm NPT fitting for introducing inert gas or fresh air into chamber.
● All welded and sealed construction assures continuously low particle counts
● Supports and plenums remove easily for cleaning.
● Baked on white powder-coated finish on the exterior for long-lasting corrosion protection
● Fiberglass insulation to ensure safe cabinet skin temperature
● Independent, over-temperature protection
● Exclusive heat-resistant HEPA Filtered Air Delivery System
● re-circulated air is continuously filtered;
● Air pressure meter indicates when filter needs replacement
● High volume horizontal air recirculation system and electric heating system allow for maximum temperature uniformity in performance.
Parameters | Product
|
Model |
GM-J100-ES-02 |
|
Temp. Range |
Room temp. +35~260°C |
|
Control accuracy |
+/- 1.0°C |
|
Temp. Distribution Accuracy |
±2%°C (empty load) |
|
Interior Dimensions HxWxD(mm) |
910x620x620 |
|
Exterior Dimensions HxWxD(mm) |
1750x855x1030 |
|
Shelves |
4 plates |
|
Workspace Capacity |
350L |
|
Control System |
LCD touch screen with PLC |
|
Safety Device |
Door detector switch, overheat protector, fan overload detection, overcurrent ELB etc. |
|
Power Supply |
3 phase AC 380V or as request |
Shelves
Temperature recorders (paper or paperless)
Ethernet communications
Applications | Product
- Aging
- Annealing
- Testing
- Curing
Industries | Product
- Aerospace
- Automotive
- Defense
- Electronics
- Research & Development
- Rubbers & Plastics
- Semiconductors
- Telecom
- Optical Communication
Customization | Product
GMS can provide varying levels of uniformity, size, temperature range, vacuum and automatic functions; if you have a specific tolerance or specification which must be met, please contact us with your requirements so we can ensure the equipment is designed, tested, and adjusted to meet those requirements.
