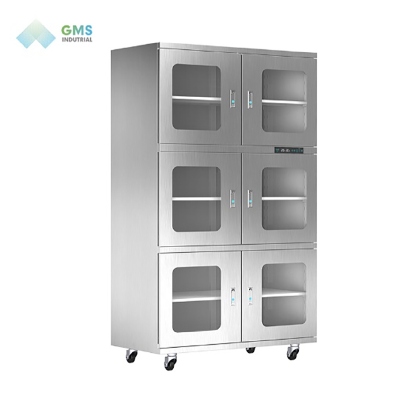

1250L Sustainless Steel Nitrogen Cabinet

1250L Sustainless Steel Nitrogen Cabinet

Category: Brand:

Description

1250L Sustainless Steel Nitrogen Cabinet

A stainless steel nitrogen cabinet is a specialized storage solution designed to protect sensitive components and materials from oxidation and moisture damage by maintaining an inert nitrogen atmosphere. Stainless steel cabinets are made from high-quality 304 stainless steel, which offers excellent corrosion resistance and is easy to clean. The mirrored finish not only provides a modern appearance but also facilitates cleaning and maintenance. The high surface finish and easy-to-clean nature of these cabinets make them suitable for cleanroom environments, with some models even meeting the cleanliness standard of Class 100



FEATURES | Product

 1.Optimal clean and low-humidity environment
2.LCD display shows constant temperature and humidity status;
3.Smart humidity controller maintains stable constant humidity;
4.Fast humidity recovery status;
5.Automatic nitrogen filling system to save nitrogen;
6.Automatic alarm function ensures instant attention on products;
7.Large capacity with movable shelves, in interspaces are adjustable according to products;
8.Maintain-free, and eco-friendly with low electricity consumption;
9.Customized cabinets are acceptable.

Meanwhile, for the new energy and new material industry, GMS has strong customized service capability. The company according to the customer’s actual needs, customized for drying, curing, aging or evaluation test purposes of the baking equipment. Including various types of precision baking equipment, non-standard customized tunnel baking equipment, automatic baking equipment, vacuum baking equipment, clean baking equipment, explosion-proof baking equipment, moisture-proof engineering and moisture-proof storage equipment. Our products follow the trend of Industry 4.0 and intelligent manufacturing, and we develop integrated equipment management systems and Internet of Things solutions to meet customers’ needs for high-precision, equipment monitoring and data collection functions, to improve production efficiency and establish a reliable evaluation system for our customers.



Parameters | Product

Product Name

ESD Safe Nitrogen Cabinet   Model: GZ-1250DA

External Size

W1190*D590*H1960(mm) / W46.85*D23.23*H77.17(in)

Internal Size

W1140*D560*H1800(mm) / W44.88*D22.05*H70.87(in)

Weight

135KG

Capacity

1250L

Shelves

5 (Adjustable and movable), max. load 50kg/layer

Lighting

Heat-free LED cold light lamp is installed in side for clear observation.

Relative Humidity Range

1%-50%RH adjustable

Voltage

100-130V / 220-240V Optionally Available

Control Panel

Using a new LCD display, the temperature and humidity values are accurate to ±1, and the temperature and humidity are displayed independently.

Accuracy

±3%RH, ±1ºC (Imported Swiss Sensirion ultra-sensitive temperature and humidity sensor)

Automatic Nitrogen System

Intelligent nitrogen filling system, when the humidity exceeds, nitrogen will be added, when the humidity decreases, it will stop N2 filling

Material

The main body is made of 304 stainless steel construction glass viewing windows. The main body is ESD safe and it is equipped with retractable grounding wire.

Certification

 1510L ESD Safe Nitrogen Cabinetxkd



Options | Product

PC Humidity management softwareyca

PC Humidity management software

Shelfsl3l

Shelfs

Standing Alarm Lightoxy

Standing Alarm Light

Oxygen Content Monitore3s

Oxygen Content Monitor



Applications | Product

• SMT materials
• PCB, PCBA, IC
• Electronic components
• Photographic & Optic Lens, Films
• Cameras or Digital Photography
• Audiovisual, Precious Paper Materials
• Precise Instruments



Industries | Product

  • Optics & Optoelectronics
  • Semiconductors
  • Pharmaceuticals & Chemicals
  • Universities & Scientific Research Institutions & Laboratories
  • Electronic Industry
  • Household & Industrial
